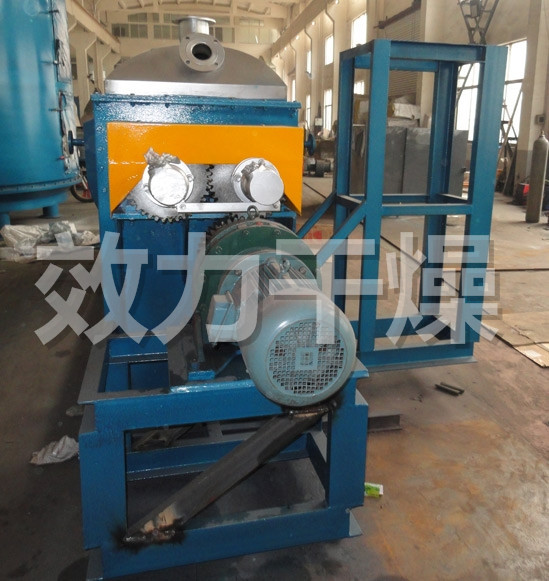

Horizontal Sludge Hollow Blade Paddle Dryer Energy Saving
Product Description:
Our Industrial Paddle Dryer is the ideal solution for processing volatile, flammable, or oxygen-sensitive materials that require precise thermal management
With its sealed design and minimal air requirements, it effectively eliminates the risks of dust entrainment and oxidation, making it a staple in the fine chemical, petrochemical, and dye industries
Technical Specifications
| project | KJG18 |
| model | |
| heat transfer area(m2) | 18 |
| Effective volume(m3) | 1.09 |
| Speed range(rmp) | 10-20 |
| power(kw) | 7.5 |
| Container width A(mm) | 940 |
| Total width B(mm) | 1320 |
| Container width C(mm) | 3328 |
| Total length D(mm) | 5918 |
| Inlet/outlet distance E(mm) | 3048 |
| Center High F(mm) | 610 |
| Total height H(mm) | 1270 |
| Inlet N(inch) | 1 |
| Outlet O(inch) | 1 |
Key Benefits for Specialized Processing
Optimal Solvent Recovery: The system is designed to minimize air usage, ensuring solvent evaporation is highly concentrated and easily captured through closed-loop circulation
Protects Heat-Sensitive Products: Low-speed agitation and controlled temperature gradients (from -40℃ to 320℃) prevent material degradation or quality loss
Oxidation & Explosion Prevention: The equipment is particularly suitable for materials that are easily oxidized or flammable, as it operates without the need for large volumes of hot air
Self-Cleaning Heat Surfaces: Wedge-shaped blades utilize a relative movement effect to "wash" the heat transfer surface, preventing sticky materials from adhering and overheating
High Energy Efficiency: By eliminating air-driven heat loss, only 1.2 kg of steam is needed to evaporate 1 kg of water from slurry materials
Installation structure diagram
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
FAQ
Q: Why is this dryer better for solvent recovery than a rotary dryer?
A: Because it uses indirect heating, it doesn't require high airflows that dilute the solvent. This leads to a higher concentration of vapor, making recovery much simpler and more cost-effective
Q: Can I use thermal oil as the heating medium?
A: Yes. The system can utilize steam, hot water, or thermal oil through its hollow shafts and shell jacket
Q: Does it handle sticky/paste materials?
A: Absolutely. The wedge-shaped blades are specifically designed with a self-cleaning function to handle paste and slurry materials without clogging
